INTERMAT 45° WITH LUGS
Stock Code:
077700
Details
-
Pky Qty:50
Price:
$9.39
Description

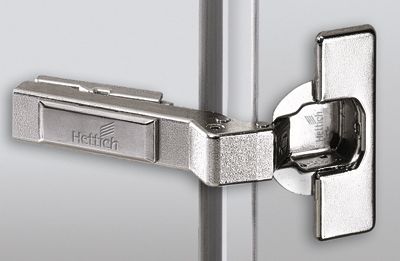

Intermat 9936 W45-T43
Cup hinge, snap-on assembly,
integrated door overlay and eccentric depth adjustment.
Opening angle 95°, cup diameter 35 mm.
For corner cupboards and cabinets with 45° face angle.
Intermat 9936 W45 hinges are snapped onto the mounting plate.
Depth adjustment via eccentric screw -0,5 mm/+3,5 mm.
Height adjustment via mounting plate +2 mm/-2 mm
Cup fixing screw ø 3,5 x 13 mm nickel-plated, for cup T 42
Mounting Plate needs to be ordered separately
