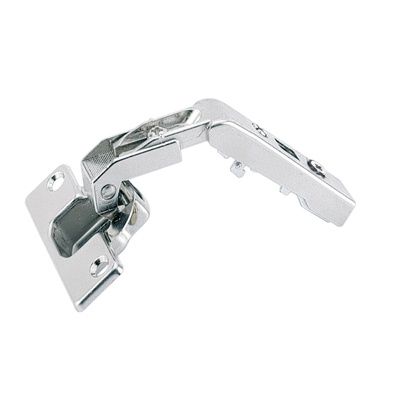

INTERMAT-CORNER 50°/65° LUGS
Stock Code:
9046609
Details
-
Pky Qty:200
Price:
$11.40
Description
Intermat 9930, Base 24 mm, TH 43, Press-in version
•Cup hinge for clip on installation
•Quality classification under EN 15570, Level 2
•Cup diameter 35 mm
•Cup depth 10.5 mm (Fix 11.3 mm)
•Diagonal adjustment + 9.5 mm / - 9.5 mm
•Integrated overlay adjustment, see diagram
•For integrated depth adjustment, see diagram
•Height adjustment at mounting plate
•Hinge arm material: zinc die-cast nickel plated
•Hinge cup material: steel, nickel plated
•Mounting Plate needs to be ordered separately
