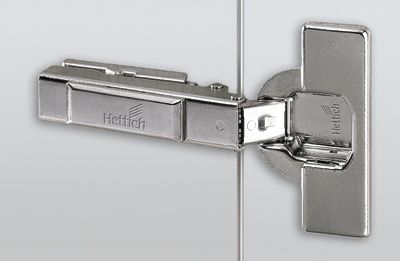

INTERMAT 95° 32MM THICK DOOR FC LUGS
Stock Code:
1058371
Details
-
Pky Qty:200
Price:
$3.48
Description
Intermat 9936, Base 12.5 mm, TH 43, Press-in version
Cup hinge, snap-on assembly,
integrated door overlay and eccentric depth adjustment.
Opening angle 95°, cup diameter 35 mm.
The hinge enables an optimum reveal (hairline reveal) for profile doors.
Intermat 9936 hinges are snapped onto the mounting plate.
Depth adjustment via eccentric screw -0,5 mm/+3,5 mm.
Height adjustment via mounting plate +2 mm/-2 mm
Cup fixing screw ø 3,5 x 13 mm nickel-plated, for cup T 42
Mounting Plate needs to be ordered separately
