INTERMAT 110° T43 LUGS
Stock Code:
1029520
Details
-
Pky Qty:200
Price:
$3.08
Description

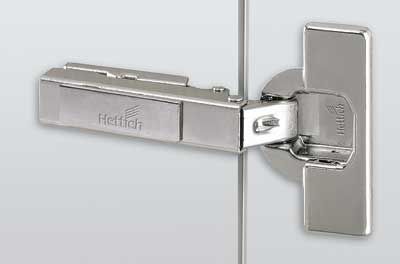

Intermat 9943-T43
Cup hinge with snap-on assembly,
integrated door overlay and eccentric depth adjustment.
Opening angle 110°, cup diameter 35 mm
Small hole depth for door thickness 15 mm or larger.
Intermat 9943 hinges are snapped on to the mounting plate.
Depth adjustment via eccentric screw -0,5 mm/+3,5 mm.
Height adjustment via mounting plate +2 mm/-2 mm
Cup fixing screw ø 3,5 x 13 mm nickel-plated, for cup T 42
Order no. 048 296, PU 200
