SENSYS 165° SOFT CLOSE THFIX

Stock Code:
9099543

Details

  • Pky Qty:
    50
Price:
$15.66

Description

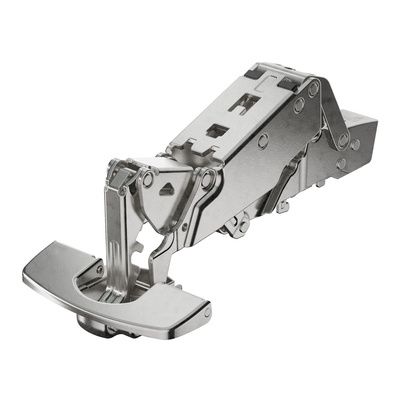

Sensys 8657i zero protrusion hinge, Base 12.5 mm, THS 55, Fast assembly Fix

•Cup hinge with clip on installation and integrated Silent System
•Quality classification under EN 15570, Level 3
•For door thickness of 15 – 32 mm
•Cup diameter 35 mm
•Cup depth 11.6 mm
•Integrated +/- 2 mm overlay adjustment
•Integrated depth adjustment + 3 mm / - 2 mm
•Height adjustment at mounting plate
•Opening angle can be reduced by means of optional accessory
•Zero protrusion hinge
•Hinge arm material: steel, nickel plated
•Hinge cup material: steel, nickel plated
•Mounting Plate needs to be ordered separately
